REFRIGERANT HOSE Kits and Manifolds

1/4" Hose options:

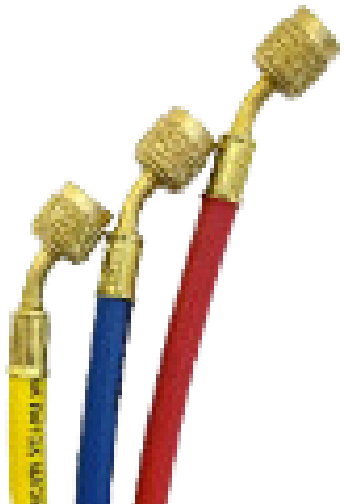

Standard Fittings:

Part#

G60RBY-60" length 3Pack Red, Blue, Yellow

G72RBY- 72" length 3Pack Red, Blue, Yellow

G60Y- 60" length Single Yellow

G72Y-72" length Single Yellow

Ball Valve Fittings:

Part#

GBV60RBY- 60" length 3Pack Red, Blue, Yellow

Anti-blowback Fittings:

Part#

GAB48RBY- 48" length 3Pack Red, Blue, Yellow

GAB60RBY-60" length 3Pack Red, Blue, Yellow

GAB72RBY- 72" length 3Pack Red, Blue, Yellow

GAB60Y- 60" length Single Yellow

GAB72Y- 72" length Single Yellow

Features:

all hoses:

• All assemblies and components are made in the USA
• Rated 800 PSI maximum working pressure / 4000 psi minimum burst pressure
• Nylon, veneer-lined hose for low permeation applications meeting EPA requirements
• Double-barrier design of black, polychloroprene rubber with braided aramid yarn for  additional permeation protection and strength
• Quality brass fittings to ensure longer hose life and safety
• Approved for the following refrigerants: R12, R22, R134a, R410A, R414A, R500, R502,
• FR1GC-FR12, R11, R113, R114, R123, R401A, R401B, R402A, R402B, R404A, R407A,  R407B, R407C, R408A, R409A, R507, R32, R454B

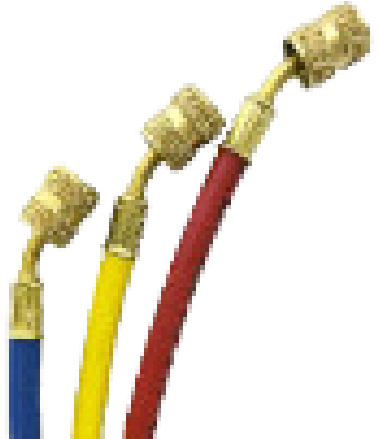

ANTI-BLOW BACK HOSES:

• Low-loss fittings that immediately trap refrigerant eliminating venting
• Super-neoprene gaskets have longer-life with slower deterioration
• Knurled nut designed for better grab for tightening in harder to reach places

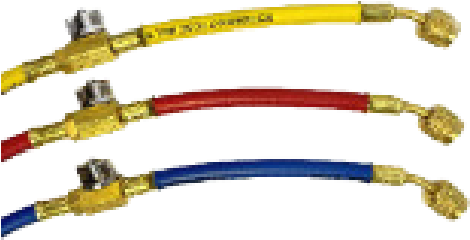

BALL VALVE HOSES:

• Full flow, in-line ball valve
• 8" length of hose between ball valve and fitting easy accessibility

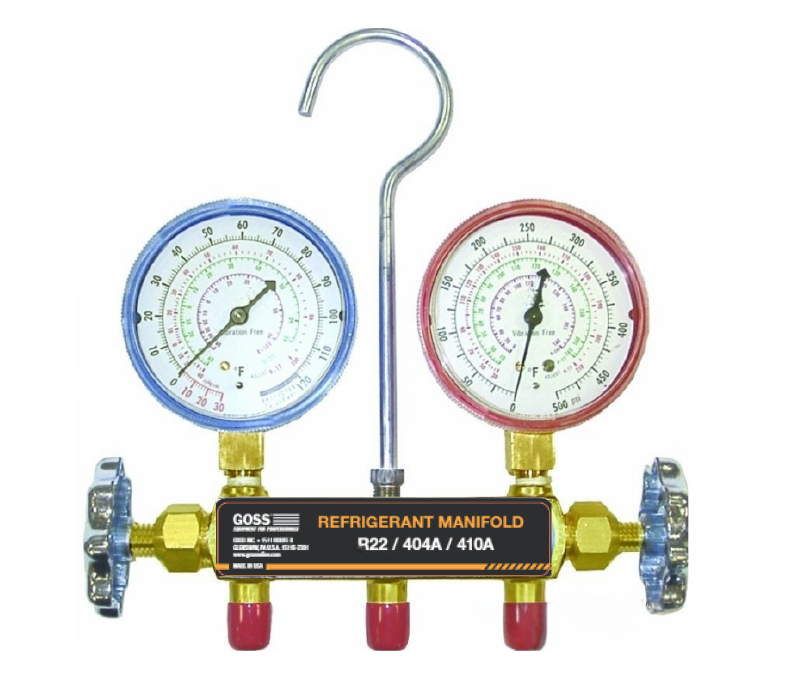

Manifolds:

Part#

R3M4G- Refrigerant type R22, R404A, R410A

R3M2G- Refrigerant type R134A, R404A, R22

• All assemblies and components made in USA
• Forged brass body with metal valve handles
• Heavy-duty swivel hook
• Vibration free gauges for minimal needle movement
